Injection Mold Design and Manufacturing
Mold design, mold fabrication and plastic part production.
Companies we have worked with
- Motherson
- Suzuki India
- Motionics
- Wypex
- Motherson
- Suzuki India
- Motionics
- Wypex
01 Mold Design
Mold Design
We design injection, blow and rubber molds. Every design is checked with mold flow analysis before any steel is cut.
Checked on every design
- DFMDraft, wall thickness, undercuts, parting line
- Mold flowFilling, pressure, weld lines, air traps
- Gate locationEven filling, no marks on visible faces
- Sink marksThick sections found and corrected
- Air ventingNo burn marks or short shots
- CoolingFlat parts, shorter cycle time
You receive the 3D mold assembly, 2D drawings and BOM, in native CAD and STEP. Mold design starts at $200.
02 Mold Manufacturing
Mold Manufacturing
Molds are made to the approved design and tested on our own injection molding machine before dispatch.
-
01
Design approval
You approve the mold design and the flow analysis.
-
02
CNC and VMC machining
Core, cavity and plates machined to the drawing.
-
03
EDM and wire cut
Fine details, sharp corners and deep ribs.
-
04
Assembly and polishing
Fitting, polishing, and checks on cooling and ejection.
-
05
Trial
First shots on our machine. Samples sent to you with photos and video.
-
06
Dispatch
Packed and shipped, or kept with us for production.
- P20 steel for most molds. Harder steels for high volumes.
- Machining with partner toolrooms, under our supervision.
- The mold is yours after payment.
03 Production
Production
Plastic parts from our molds or from your existing molds.
From our mold
Production starts on the same mold once you approve the samples. Mold and parts are quoted together.
From your mold
Send us your mold. We check it, run trials, and start production after you approve the samples.
04 Part Design and 3D Printing
Part Design and 3D Printing
We also design plastic and mechanical parts, and 3D print samples to check fit before tooling.
- Part design3D models and assemblies
- Reverse engineeringFrom a sample or photos
- Drawings2D drawings with tolerances
- 3D printingFDM in-house, resin on request

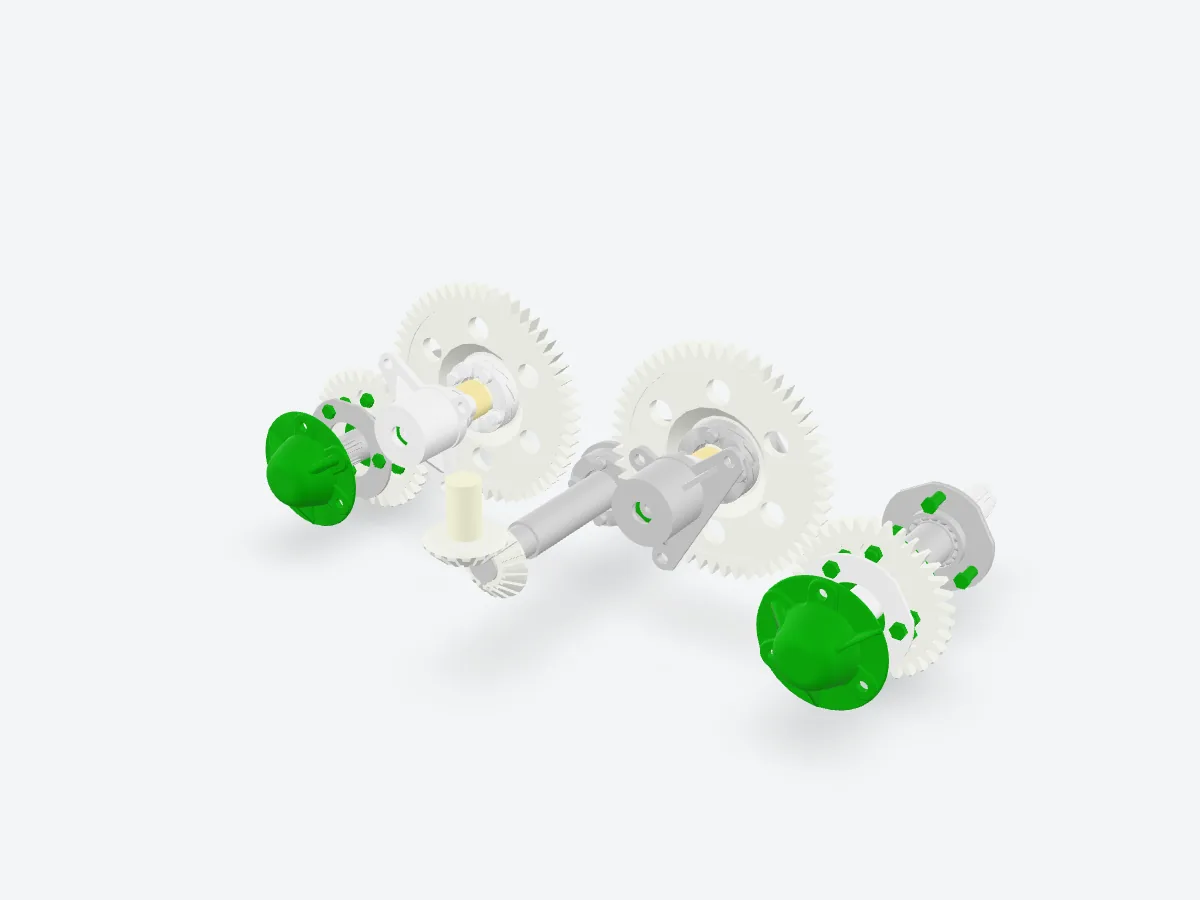

Gearbox assembly designed by our team.
05 About Us
About Us
Brij Mold Makers is a mold design and manufacturing company. Our team has worked with leading manufacturers in the automotive, household, FMCG and electronics industries.
Design work is led by Yuvraj Sehgal. We design in SolidWorks, Siemens NX and AutoCAD, and run flow analysis in Autodesk Moldflow.
Really an expert in Solidworks and plastic molds. Highly recommended.
One of the best engineers I've had the pleasure of working with.
06 Request a Quote
Send your part file or drawing.
We reply within 24 hours with a quote and a free DFM check. NDA on request.
- +91 95305 77218
Which files can I send?
STEP, IGES, Parasolid, SolidWorks, STL, DWG, DXF or PDF. A sample or photos also work.
Who owns the design and the mold?
You do, once paid for.
Can I order only the mold design?
Yes. You get native CAD and STEP files and can have the mold made anywhere.
